Audio interfaces: (preamps, digital audio conversion)

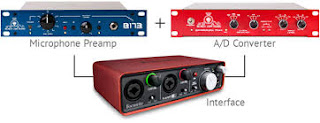

In the realm of digital audio recording, the audio interface stands as a crucial bridge between the analog world of sound and the digital domain of computers. It's not merely a connector; it's a sophisticated device that shapes the quality and fidelity of your recordings. Two core functions define an audio interface: the preamp, which amplifies weak signals, and the digital audio conversion, which translates analog signals into digital data and vice versa.

The Role of the Preamp:

The preamp, short for pre-amplifier, is the first stage in the signal path. Its primary function is to boost the weak electrical signals generated by microphones or instruments to a level suitable for digital conversion. A high-quality preamp is essential for capturing a clean and clear signal, free from unwanted noise and distortion.

Gain and Headroom:
- Preamp gain controls the level of amplification. Adequate gain is crucial for capturing a strong signal, but excessive gain can lead to clipping (distortion).
- Headroom refers to the amount of signal level available before clipping occurs. A preamp with ample headroom can handle dynamic vocal performances without distortion.
Preamplifier Types:
- Solid-State Preamps: These are known for their clean and transparent sound, often favored for their accuracy.
- Tube Preamps: These impart a warm and rich sound, often preferred for vocals and instruments that benefit from added character.
- Transformer-Based Preamps: These can add a desirable "color" to the sound, often used for their vintage vibe.
Phantom Power:
- Many condenser microphones require phantom power (+48V) to operate. Audio interfaces provide this power through the XLR input.

Digital Audio Conversion: Analog to Digital and Back

Digital audio conversion is the process of translating analog audio signals into digital data (analog-to-digital conversion or ADC) and converting digital data back into analog audio signals (digital-to-analog conversion or DAC). This process is fundamental to digital audio recording and playback.

Analog-to-Digital Conversion (ADC):
- The ADC samples the analog waveform at regular intervals and converts each sample into a digital value.
- Sample Rate: The sample rate determines how many samples are taken per second, measured in kilohertz (kHz). Higher sample rates capture more detail in the audio signal. Common sample rates include 44.1 kHz (CD quality), 48 kHz, 96 kHz, and 192 kHz.
- Bit Depth: Bit depth determines the resolution of each sample, measured in bits. Higher bit depths provide a wider dynamic range and lower noise floor. Common bit depths include 16-bit, 24-bit, and 32-bit.
Digital-to-Analog Conversion (DAC):
- The DAC reconstructs the analog waveform from the digital data, allowing you to hear the recorded audio through speakers or headphones.
- The quality of the DAC directly impacts the clarity and accuracy of the playback. A high quality DAC is essential for critical listening.
Latency:
- Latency is the delay between the input and output of an audio signal. Audio interfaces with low latency are essential for real-time monitoring and recording.
- Modern audio interfaces use drivers that can reduce latency to very low amounts.

Key Features of Audio Interfaces:

Input/Output (I/O) Count: The number of inputs and outputs determines how many microphones and instruments you can connect simultaneously.
Connectivity: Audio interfaces offer various connectivity options, including XLR, 1/4-inch TRS, USB, Thunderbolt, and FireWire.
Driver Compatibility: Ensure the audio interface is compatible with your operating system and DAW.
Monitoring Options: Many audio interfaces include headphone outputs and monitor control features.
Built-in DSP: Some interfaces include built in Digital Signal Processing, that allow for onboard effects, and lower latency.

Choosing the Right Audio Interface:

Your Needs: Consider your recording needs, such as the number of inputs required and the types of instruments or microphones you'll be using.
Budget: Audio interfaces range in price from entry-level to professional-grade.
Computer Compatibility: Ensure the interface is compatible with your computer's operating system and connection ports.
Sound Quality: Research reviews and listen to audio samples to evaluate the sound quality of different interfaces.

An audio interface is a critical investment for any digital audio recording setup. By understanding the roles of the preamp and digital audio conversion, you can make an informed decision and choose an interface that meets your needs and enhances your recordings.
